VM-6360 Digital Vibration Meter with ISO 2954 Compliance RS-232 and Bluetooth Data Output for Precise Vibration Analysis

Name: VM6360 Digital Vibration Meter with ISO 2954 Compliance RS232 and Bluetooth Data Output for Precise Vibration Analysis
Brand: Bestone
Price: 1 USD

China VM-6360 Digital Vibration Meter with ISO 2954 Compliance RS-232 and Bluetooth Data Output for Precise Vibration Analysis wholesale

MOQ : 1

Price : negotiable

Brand Name : Bestone

Model Number : VM-6360

Certification : CE,ROHS,ISO

Place of Origin : CHINA

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : more than 1000pcs per month

Delivery Time : 5-8 working days

Packaging Details : PP box and white box and outer carton

Model NO. : VM-6360

Frequency Range : Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz

Accuracy : 5 % of Reading + 2 Digits

Transport Package : Gift Box and Carrying Case

Specification : CE, ROHS

Trademark : BESTONE

Origin : China

HS Code : 9031809090

Production Capacity : 500000pieces/Year

Contact Now

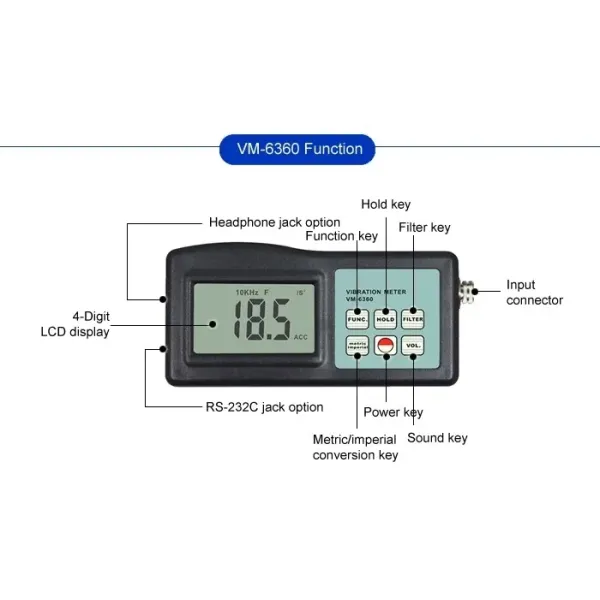

Digital Vibration Meter Vibrometer Gauge Tester Analyzer (VM-6360)

Applications

Designed for measuring periodic motion and detecting imbalance and deflection in moving machinery. Provides essential data for quality control, runtime monitoring, and equipment maintenance. Features a wide frequency range (10Hz-10kHz) in acceleration mode.

Key Features

Compliant with ISO 2954 for periodic measurements and mechanical fault detection
Ideal for on-site vibration measurement in rotating machinery
High-quality accelerometer for accurate, repeatable measurements
Optional headphones for use as electronic stethoscope
RS-232 data output for PC connectivity
Bluetooth data output option available

Vibration Standard

ISO/IS2373 Motor Quality Standard According As Vibration Velocity

Quality Rank	Rev(rpm)	H:high of shaft(mm)	Maximum vibration velocity rms(mm/s)
Normal	600~3600	80<H<132	1.8
Good(R)	600~1800	132<H<225	2.8
Good(R)	1800~3600	225<H<400	4.5
Excellent(S)	600~1800	0.71	1.12
Excellent(S)	1800~3600	1.12	1.8

Technical Specifications

Parameter	Specification
Sensor	Piezoelectric Transducer
Measuring Range	Acceleration: 0.1~400m/s² Equivalent Park Velocity: 0.01~400mm/s True RMS Displacement: 0.001~4.0mm Equivalent Peak-peak
Frequency Range	Acceleration: 10Hz~10kHz Velocity: 10Hz~1kHz Displacement: 10Hz~1kHz
Accuracy	5% of Reading+2 digits
Operating Conditions	Temperature: 0~50ºC Humidity: <90%RH
Power Supply	4x1.5V AAA(UM-4)Battery
Dimensions	124x62x30mm
Weight	120g (Not Including Batteries)

Standard Accessories

Main Unit
Piezoelectric Transducer
Powerful Rare Earth Magnet
Probe (Cone) & Probe (Spherical)
Carrying Case (B04)
Manual Book

Optional Accessories

Headset
RS-232C Data Cable with Software
Bluetooth Data Adapter with Software
